• One‑speed self‑tailing winch with fast retrieval—ideal for boats ~9–10 m
• Aluminium drum (hard black anodised & Teflon‑coated) or chrome‑plated bronze variant
• Bronze base & gears with AISI 316 stainless steel shaft and roller bearings
• Drum Ø 73 mm; Base Ø 128 mm; Height 135 mm; mounts using 5×6 mm screws
• Designed for 6–10 mm lines, manual recovery ~58 mm per handle turn
• Power rating P1 28 (high mechanical advantage)
• Lightweight yet robust: ~2.7 kg (aluminium), ~3.8 kg (chrome‑bronze)
• Simple disassembly—unscrew top ring for full maintenance access

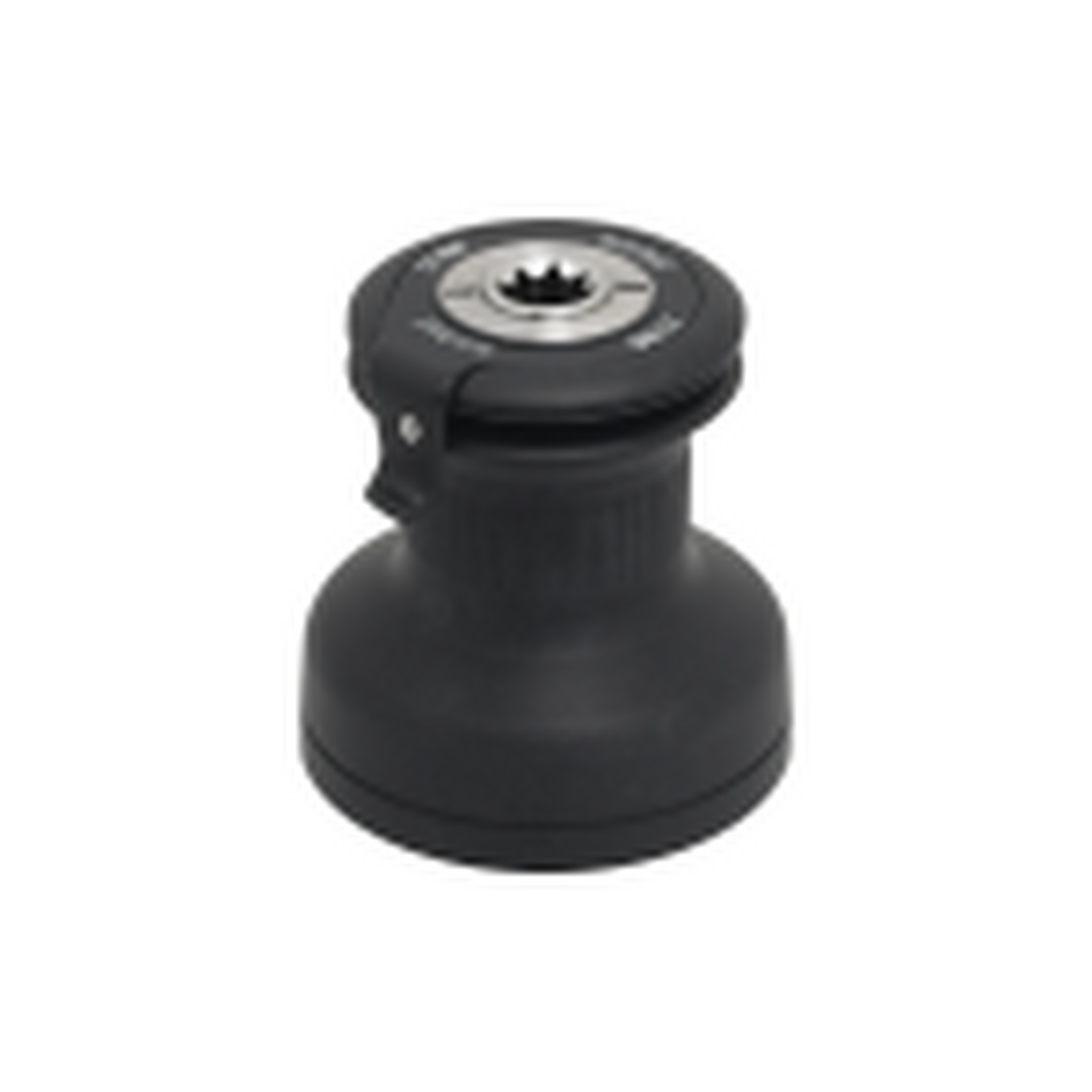

The Antal XT30 Self‑Tailing Winch (Model XT30/AL) offers powerful, efficient line control in a compact plain‑top design. The black anodised & Teflon-coated aluminium drum delivers excellent wear resistance and rope grip, while the internal bronze gearing and stainless steel shaft ensure smooth, reliable operation :contentReference[oaicite:2]{index=2}.

Spec’d for 6–10 mm line, this one‑speed winch recovers approximately 58 mm of line per handle turn with a power ratio of 28:1. The drum is 73 mm and the base is 128 mm in diameter, standing 135 mm tall, and it secures via five 6 mm countersunk screws :contentReference[oaicite:3]{index=3}.

Weighing around 2.7 kg in the aluminium version and about 3.8 kg for the chrome‑bronze, the winch balances lightweight performance with durability. It also features a user-friendly design: just unscrew the top ring for fast maintenance access to internal components :contentReference[oaicite:4]{index=4}.

Specifications
Drum Diameter: 73 mm
Base Diameter: 128 mm
Height: 135 mm
Line Size: 6–10 mm
Recovery (per turn): ~58 mm
Power Rating (P1): 28
Weight: ~2.7 kg (aluminium), ~3.8 kg (chrome‑bronze)
Mounting: 5 × Ø6 mm countersunk screws
Material: Hard black anodised & Teflon‑coated aluminium drum (or chrome‑bronze), bronze base & gears, AISI 316 shaft
Part Number: XT30/AL or XT30/CH

The Antal XT30 one‑speed self‑tailing winch combines high mechanical advantage, durability, and maintenance ease in a compact package—perfect for sailors seeking dependable, powerful line handling on medium‑sized boats.
