• Race-grade self‑tailing 2‑speed winch designed for performance sailing
• Hard black anodised aluminium drum (Ø 80 mm) with race-specific knurling
• Bronze base and gears, aluminium stem with PEEK bearings, stainless steel shaft
• Gear ratios: 2:1 (fast) and 6.4:1 (power)
• Line recovery: 125 mm per handle turn (1st gear), 40 mm per turn (2nd gear)
• Power ratios: 12.8:1 and 40:1 for versatile control
• Dimensions: base diameter 153 mm, drum diameter 80 mm, height 157 mm
• Suitable for line sizes 6–12 mm
• Mounting with five 8 mm countersunk screws
• Weight approximately 3.6 kg

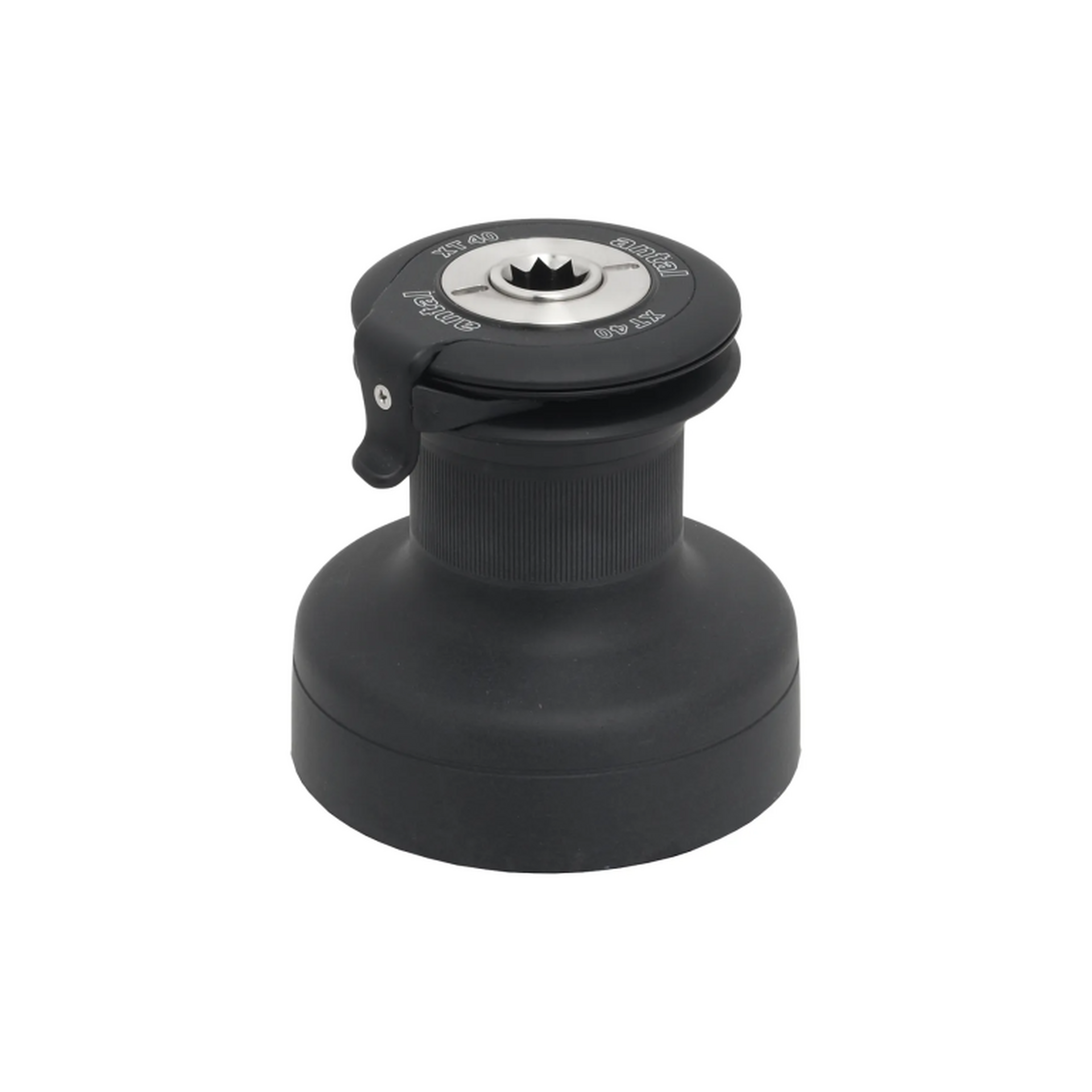

The Antal XT40 Race Winch (Model XT40R) is a high-performance two-speed self-tailing winch designed for competitive sailors seeking speed, power, and reliability. The winch features a hard anodised aluminium drum with specialized knurling for excellent grip and a robust bronze gear train for durability.

With fast gear ratios and powerful line retrieval rates, it delivers efficient operation for various sailing conditions. The compact, lightweight design balances strength and agility, making it an ideal choice for racing yachts requiring precise and reliable sail control.

Specifications
Line Size: 6–12 mm
Drum Diameter: 80 mm
Base Diameter: 153 mm
Height: 157 mm
Gear Ratios: 2:1 (1st gear), 6.4:1 (2nd gear)
Line Recovery: 125 mm (1st gear), 40 mm (2nd gear)
Power Ratios: 12.8:1, 40:1
Weight: ~3.6 kg
Mounting: Five 8 mm countersunk screws
Material: Aluminium drum, bronze base and gears, aluminium stem, stainless steel shaft
Part Number: XT40R

The XT40 Race Winch combines advanced materials and engineering to offer competitive sailors a winch that is both lightweight and capable of handling demanding sail trimming with ease and precision.
