• Self‑tailing 2‑speed winch featuring direct and reduced gears for versatile control
• Aluminium drum (black anodised & Teflon‑coated) or chrome‑plated bronze drum options
• Bronze base & gears, AISI 316 stainless steel shaft, roller bearings for smooth operation
• Drum Ø 71 mm; Base Ø 112 mm; Height 119 mm; mounts using 5×6 mm screws
• Gear ratios: 1:1 (1st speed) and 2:1 (2nd speed)
• Line recovery: ~229 mm per handle turn (1st), ~115 mm (2nd)
• Power ratios: 7:1 (1st gear), 14:1 (2nd gear)
• Suitable for line diameters 6–10 mm
• Weight: ~2.6 kg (aluminium), ~3.0 kg (chrome‑plated bronze)

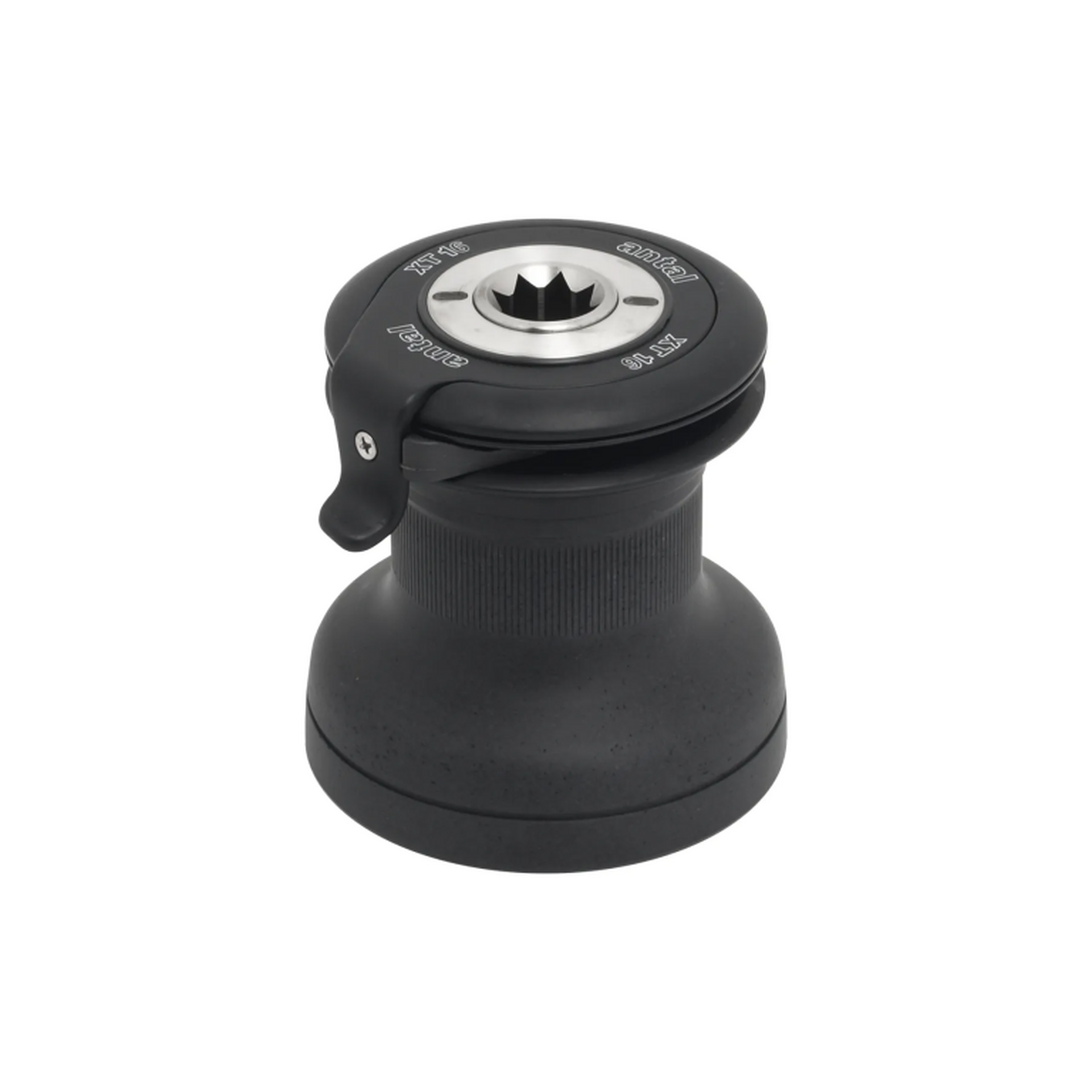

The Antal XT16.2 Two‑Speed Winch combines performance and adaptability in a compact self‑tailing design. The hard black anodised aluminium drum (or optional chrome‑plated bronze) delivers consistent line grip aided by a bronze and stainless shaft assembly with roller bearings :contentReference[oaicite:1]{index=1}.

Featuring a direct (1:1) and a reduced (2:1) gear, this winch offers fast line retrieval (~229 mm per turn) as well as powerful hauling (~115 mm per turn), driven by power ratios of 7:1 and 14:1 respectively :contentReference[oaicite:2]{index=2}.

With a standard fit for 6–10 mm lines and mounting dimensions suited to 5×6 mm countersunk screws, the winch suits boats with limited deck space. The aluminium version weighs approximately 2.6 kg, while the sturdier chrome‑bronze model is around 3.0 kg :contentReference[oaicite:3]{index=3}.

Specifications
Drum Diameter: 71 mm
Base Diameter: 112 mm
Height: 119 mm
Gear Ratios: 1:1 & 2:1
Line Recovery: ~229 mm (1st speed), ~115 mm (2nd speed)
Power Ratios: 7:1 & 14:1
Line Size: 6–10 mm
Weight: ~2.6 kg (XT16.2/AL), ~3.0 kg (XT16.2/CH)
Mounting: 5 × 6 mm screws (countersunk)
Material: Bronze base/gears, stainless steel shaft, aluminium or chrome‑plated bronze drum
Part Number: XT16.2/AL or XT16.2/CH

The Antal XT16.2 is an ideal compact winch for sailors seeking both speed and power in a self‑tailing, easy‑to‑service package—especially suited to performance and racing situations.
