SectoRing - XLarge

SectoRing – XLarge

€172.50

Available on back-order

Description

  • Low-friction spinning ring with protective guide cover—compact and lightweight
  • Plain bearing design for smooth rotation under load
  • 76 mm sheave with 20 mm inside diameter, suitable for up to 14 mm line
  • Soft Dyneema loop mounting for easy attachment and chafe resistance
  • High load capacity: SWL 3,800 kg, NBL 7,600 kg—ideal for heavy-duty use

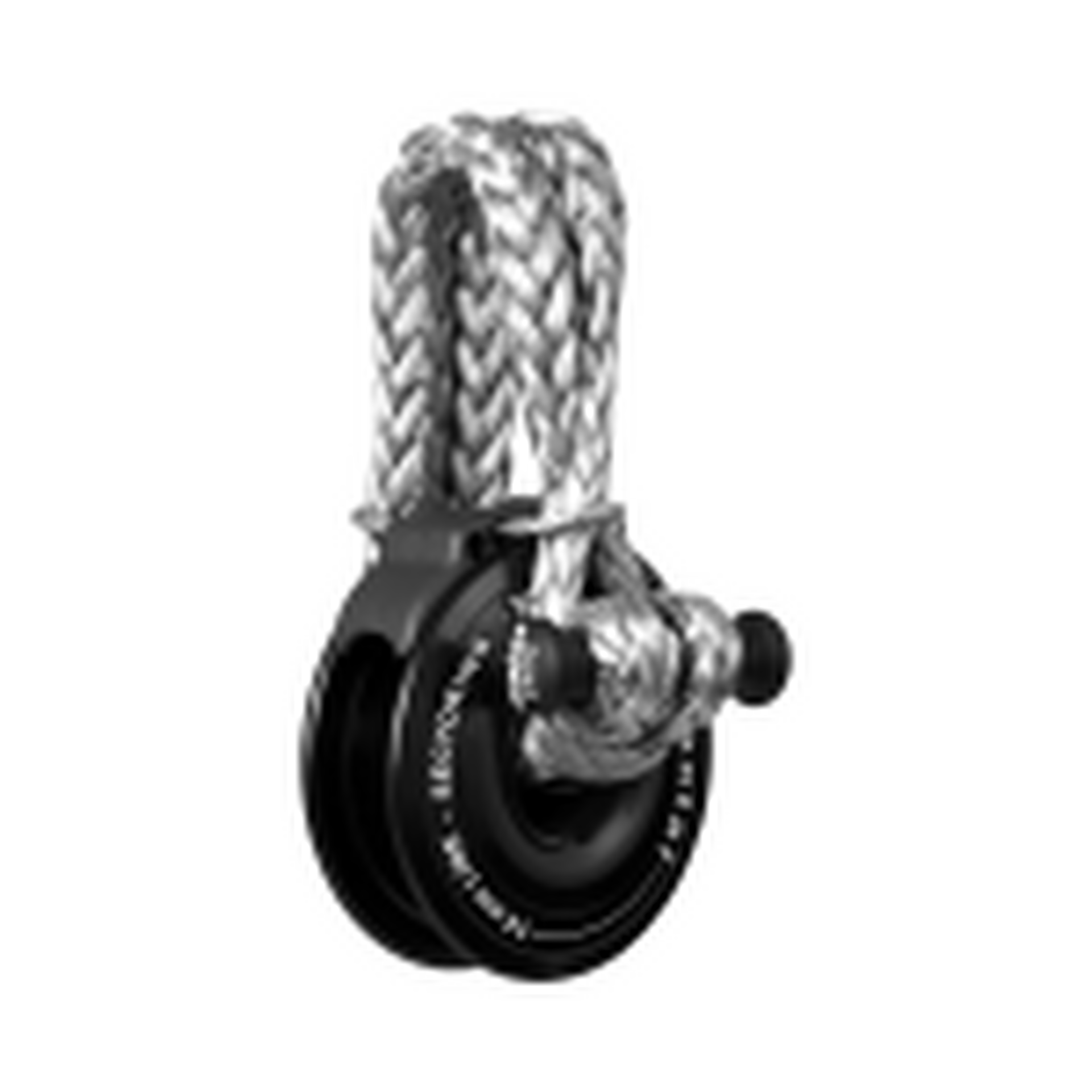

The Antal SectoRing XLarge (Model RS76.14) is a robust low-friction ring designed for smooth, high-load operations in tight spaces. Its 76 mm spinning sheave runs on plain bearings beneath a protective guide cover, enabling compact, reliable performance. Mounted via a soft Dyneema loop, it’s quick to install and resistant to chafe.

Rated for a Safe Working Load of 3,800 kg and a minimum breaking load of 7,600 kg, this ring offers heavy-duty reliability in a lightweight (~265 g) package—perfect for applications requiring strong, low-maintenance, and compact hardware.

Specifications
Sheave Diameter: 76 mm
Inside Diameter (d): 20 mm
Maximum Line Size: 14 mm
Bearing Type: Plain bearing
Safe Working Load (SWL): 3,800 kg
Minimum Breaking Load (NBL): 7,600 kg
Weight: ~265 g
Mounting: Soft Dyneema loop
Part Number: RS76.14 / ANT RS76.14

The Antal SectoRing XLarge combines high strength, extremely low friction, and a compact design—making it a top choice for demanding marine and industrial line-handling applications in confined spaces.
