SectoRing – Large

€128.00

2 in stock (can be backordered)

  • Spinning low-friction ring with guiding cover—compact and lightweight
  • Plain bearing design for smooth rotation under load
  • 63 mm sheave with 15 mm inside diameter, suitable for up to 12 mm line
  • Soft Dyneema loop mounting for easy attachment and chafe resistance
  • High load capacity: SWL 2,500 kg, NBL 5,000 kg—ideal for heavy-duty use

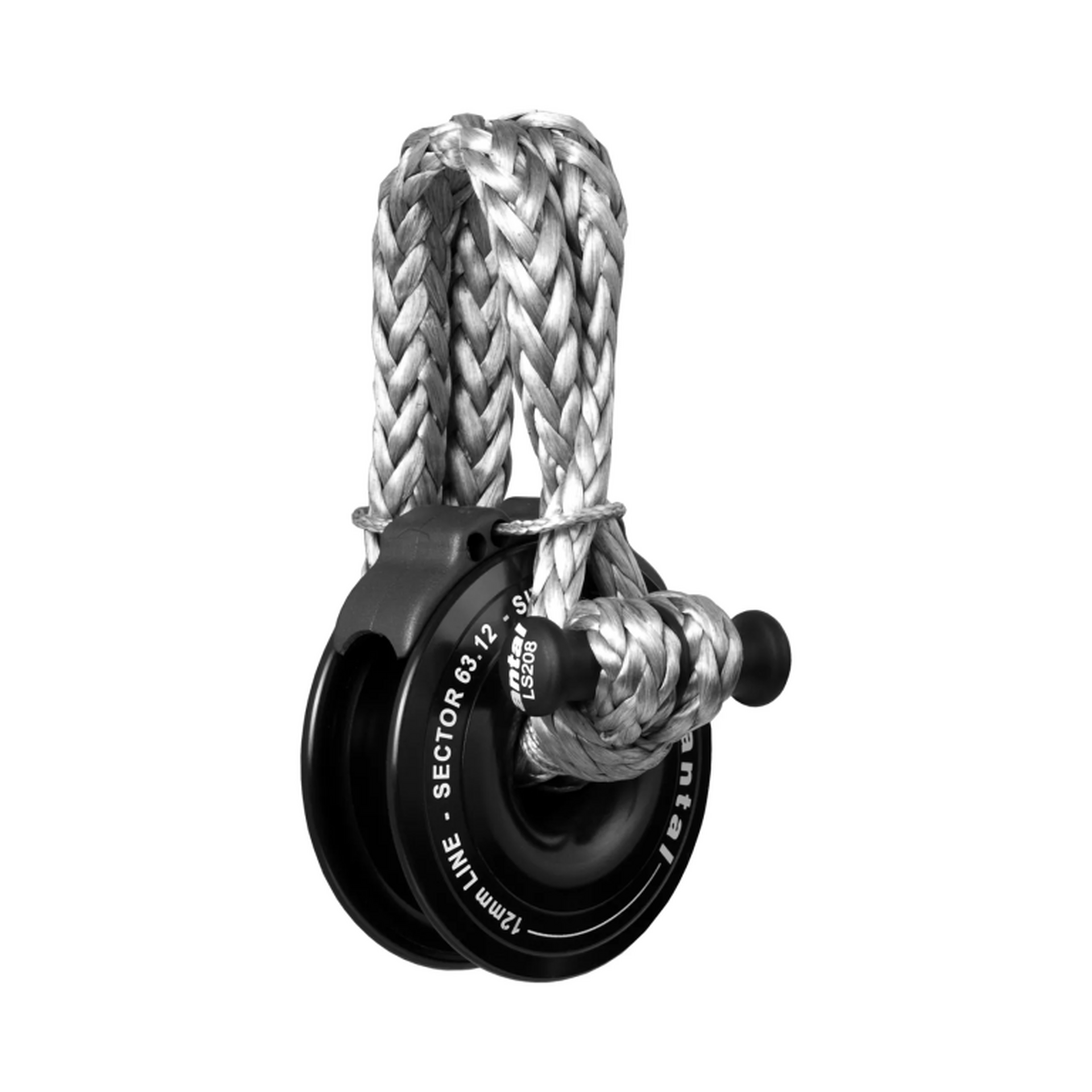

The Antal SectoRing Large (Model RS63.12) is a robust low-friction ring designed for smooth, high-load operations in tight spaces. Its 63 mm spinning sheave runs on plain bearings beneath a protective guide cover, enabling compact, reliable performance. Mounted via a soft Dyneema loop, it’s quick to install and resistant to chafe.

Rated for a Safe Working Load of 2,500 kg and a minimum breaking load of 5,000 kg, this ring offers heavy-duty reliability in a lightweight (≈ 160 g) package—perfect for applications requiring strong, low-maintenance, and compact hardware.:contentReference[oaicite:1]{index=1}

Specifications
Sheave Diameter: 63 mm
Inside Diameter (d): 15 mm
Maximum Line Size: 12 mm
Bearing Type: Plain bearing
Safe Working Load (SWL): 2,500 kg
Minimum Breaking Load (NBL): 5,000 kg
Weight: ~160 g
Mounting: Soft Dyneema loop
Part Number: RS63.12 / ANT RS63.12

The Antal SectoRing Large combines high strength, extremely low friction, and a compact design—making it a top choice for demanding marine and industrial line-handling applications in confined spaces.
