• Race-grade self‑tailing 2‑speed winch designed for performance sailing
• Hard black anodised aluminium drum (Ø 105 mm) with vertical knurling for maximum horizontal friction
• New self-tailing XT system: fixed upper disk with built-in ST arm and self-regulating lower disk on springs
• Adapts automatically to a wide range of rope diameters; if overloading occurs, releases the line to avoid excess force on the ST arm
• Base diameter: 204 mm; Height: 217 mm; Hole circle diameter: 156 mm; Hole diameter: 8 mm
• Suitable for rope diameters: 8–14 mm
• Weight: 7.1 kg (aluminium) / 10.5 kg (chrome-plated bronze)
• Mounting with six 8 mm countersunk screws
• Gear ratios: 3.3:1 (1st gear), 11.1:1 (2nd gear)
• Line recovery: 100 mm (1st gear), 30 mm (2nd gear)

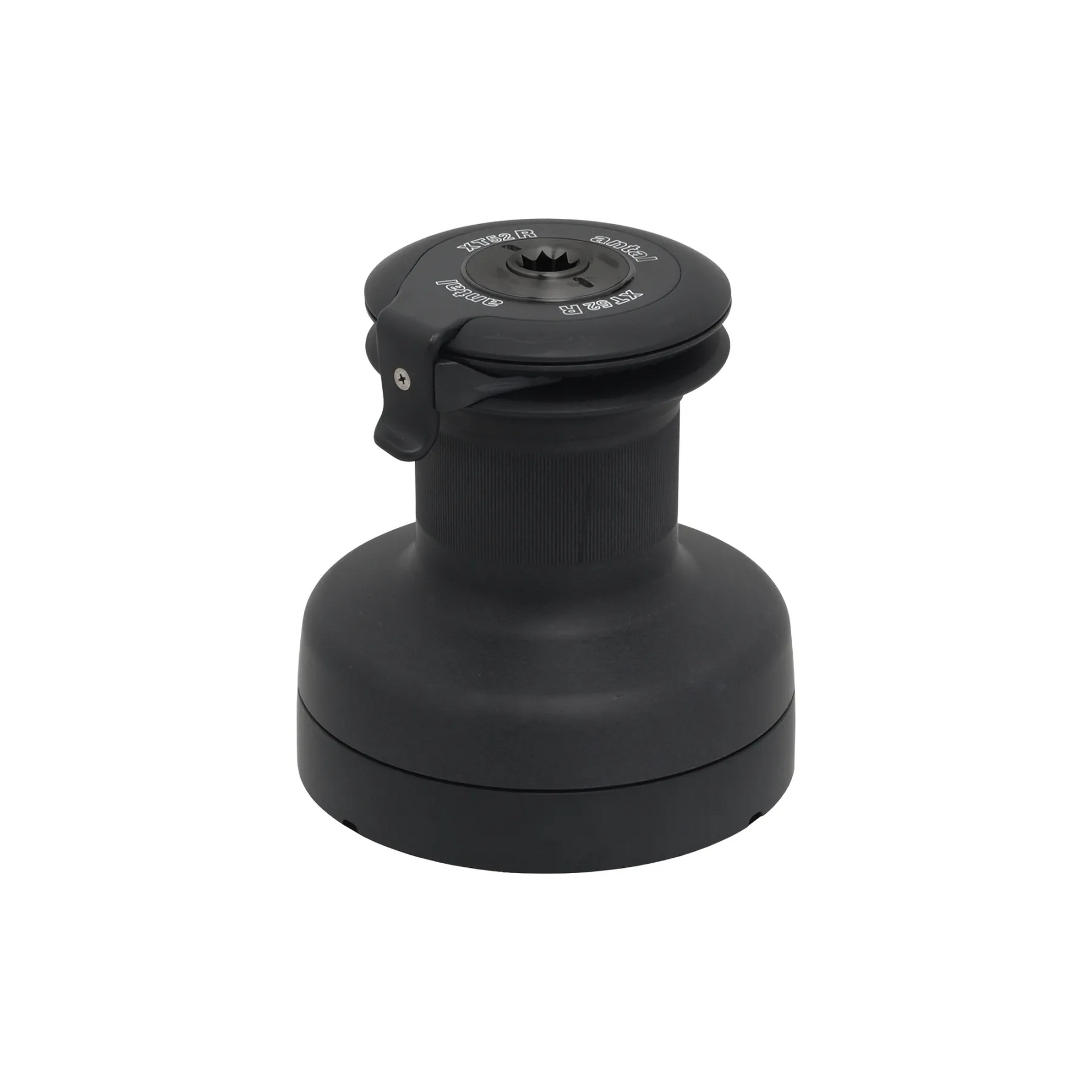

The Antal XT52 Race Winch (Model XT52R) is a high-performance two-speed self-tailing winch designed for competitive sailors seeking speed, power, and reliability. The winch features a hard black anodised aluminium drum with vertical knurling, ensuring maximum horizontal friction for optimal line grip. The new self-tailing XT system adapts automatically to a wide range of rope diameters, and in case of overloading, it releases the line to prevent excess force on the self-tailing arm.

With gear ratios of 3.3:1 in the first gear and 11.1:1 in the second gear, the XT52 offers both rapid line recovery and powerful hauling capabilities. The winch is suitable for rope diameters ranging from 8 to 14 mm and is available in both aluminium and chrome-plated bronze finishes.

Specifications
Line Size: 8–14 mm
Drum Diameter: 105 mm
Base Diameter: 204 mm
Height: 217 mm
Gear Ratios: 3.3:1 (1st gear), 11.1:1 (2nd gear)
Line Recovery: 100 mm (1st gear), 30 mm (2nd gear)
Weight: 7.1 kg (aluminium), 10.5 kg (chrome-plated bronze)
Mounting: Six 8 mm countersunk screws
Material: Aluminium drum, bronze base and gears, aluminium stem, stainless steel shaft
Part Number: XT52R

The XT52 Race Winch combines advanced materials and engineering to offer competitive sailors a winch that is both lightweight and capable of handling demanding sail trimming with ease and precision.
