• Race-grade self‑tailing 2‑speed winch designed for performance sailing
• Hard black anodised aluminium drum (Ø 93 mm) with race-specific knurling
• Bronze base and gears, aluminium stem with PEEK bearings, stainless steel shaft
• Gear ratios: 3.7:1 (fast) and 8:1 (power)
• Line recovery: 80 mm per handle turn (1st gear), 38 mm per turn (2nd gear)
• Power ratios: 20:1 and 43:1 for versatile control
• Dimensions: base diameter 173 mm, drum diameter 93 mm, height 185 mm
• Suitable for line sizes 8–14 mm
• Weight approximately 4.7 kg
• Mounting with six 8 mm countersunk screws

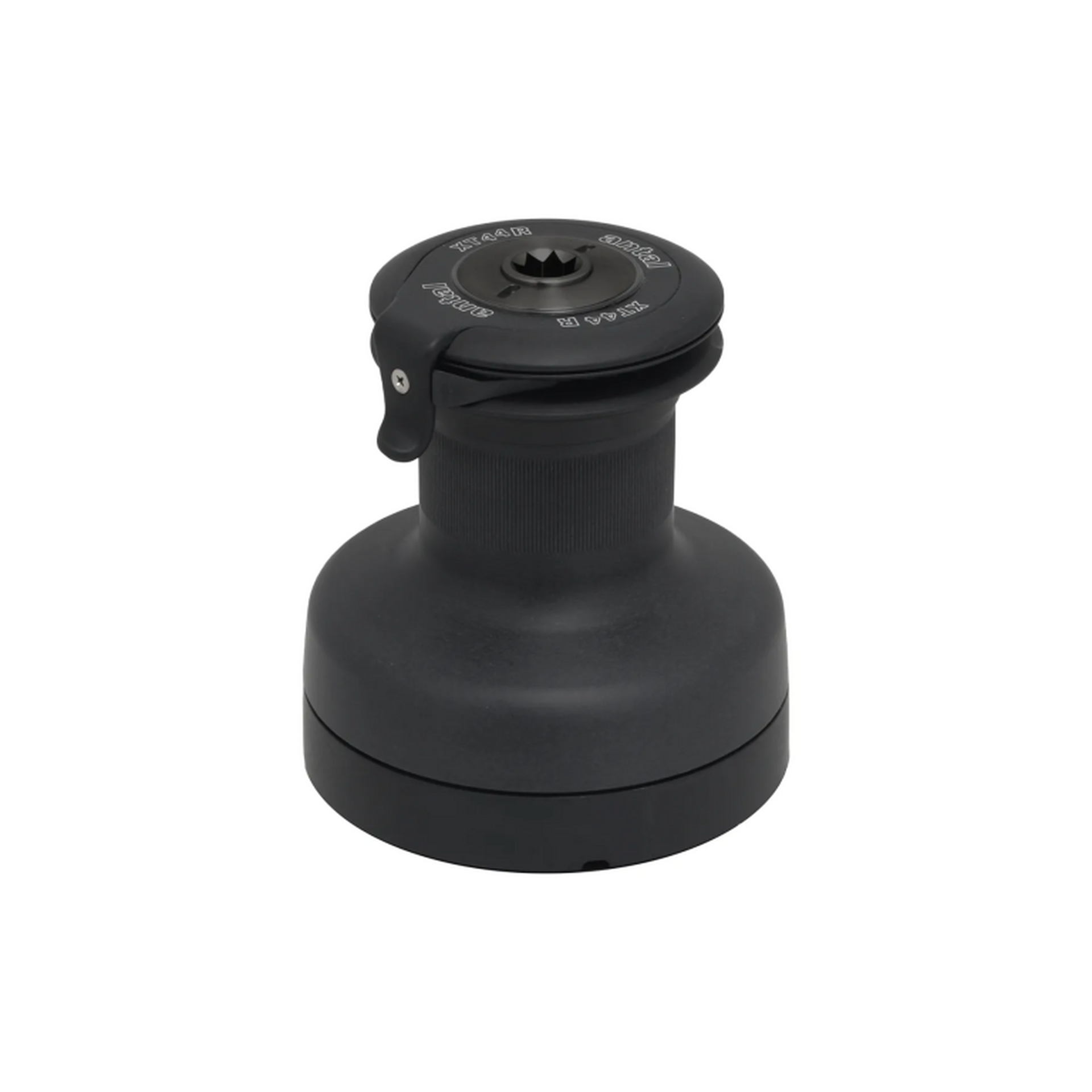

The Antal XT44 Race Winch (Model XT44R) is a high-performance two-speed self-tailing winch designed for competitive sailors seeking speed, power, and reliability. The winch features a hard black anodised aluminium drum with specialized knurling for excellent grip and a robust bronze gear train for durability.

With fast gear ratios and powerful line retrieval rates, it delivers efficient operation for various sailing conditions. The compact, lightweight design balances strength and agility, making it an ideal choice for racing yachts requiring precise and reliable sail control.

Specifications
Line Size: 8–14 mm
Drum Diameter: 93 mm
Base Diameter: 173 mm
Height: 185 mm
Gear Ratios: 3.7:1 (1st gear), 8:1 (2nd gear)
Line Recovery: 80 mm (1st gear), 38 mm (2nd gear)
Power Ratios: 20:1, 43:1
Weight: ~4.7 kg
Mounting: Six 8 mm countersunk screws
Material: Aluminium drum, bronze base and gears, aluminium stem, stainless steel shaft
Part Number: XT44R

The XT44 Race Winch combines advanced materials and engineering to offer competitive sailors a winch that is both lightweight and capable of handling demanding sail trimming with ease and precision.
