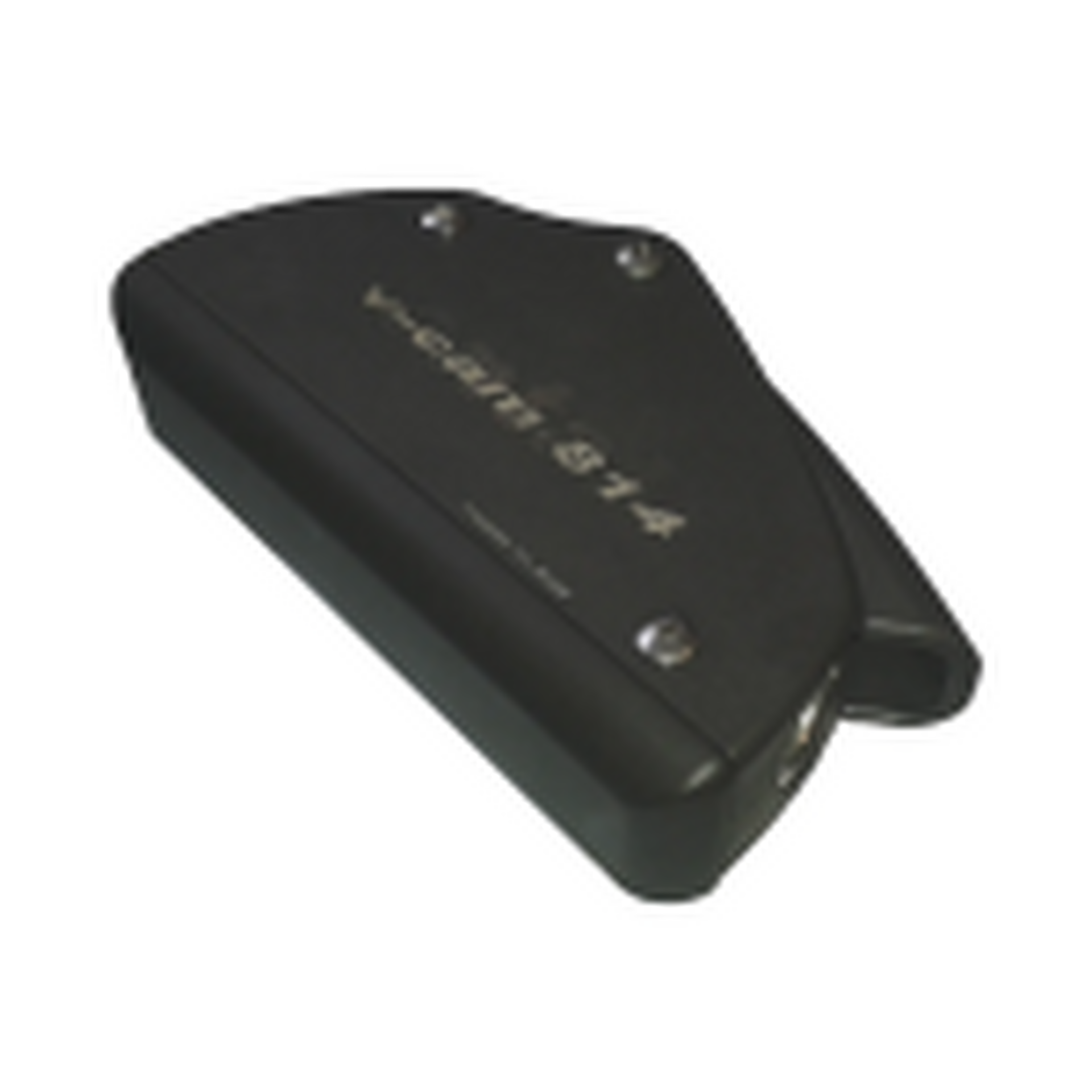

V-Cam 814 - Single Horizontal Ø10-12mm Line

V-Cam 814 – Single Horizontal Ø10-12mm Line

€152.00

Available on back-order

Description

  • High-performance rope clutch designed for 10–12 mm diameter lines
  • Horizontal configuration with single cam for secure line holding
  • Constructed with a UV-resistant resin body reinforced with stainless steel
  • Features an ergonomic silver anodized aluminum handle for easy operation
  • Dimensions: 155 mm length, 36 mm width, 78 mm height
  • Weight: approximately 0.72 kg
  • Safe Working Load (SWL): 1,200 kg
  • Mounting: Requires three 8 mm round head screws and one 5 mm round head screw (included)

The Antal V-Cam 814 Clutch – Single Horizontal (Model 509.112H) is engineered to provide secure and efficient line handling for 10–12 mm diameter lines. Its horizontal configuration ensures minimal obstruction on deck, enhancing safety and ease of movement.

Constructed with a UV-resistant resin body reinforced with stainless steel, this clutch offers durability and resistance to harsh marine environments. The ergonomic silver anodized aluminum handle allows for easy operation, even under load.

Specifications
Line Diameter: 10–12 mm
Length: 155 mm
Width: 36 mm
Height: 78 mm
Weight: 0.72 kg
Safe Working Load (SWL): 1,200 kg
Mounting: Three 8 mm round head screws and one 5 mm round head screw (included)
Material: UV-resistant resin body, stainless steel reinforcements, aluminum handle
Part Number: 509.112H

The Antal V-Cam 814 Clutch – Single Horizontal combines strength, durability, and ease of use, making it an excellent choice for sailors seeking reliable and efficient line handling solutions.
