• High-performance rope clutch designed for 8–10 mm diameter lines
• Horizontal mounting orientation for streamlined deck integration
• Constructed with a UV-resistant resin body reinforced with stainless steel
• Features a large V-shaped cam for superior holding strength
• Ergonomic silver anodized aluminum handle for easy operation
• Dimensions: 155 mm length, 36 mm width, 78 mm height
• Weight: approximately 600 grams
• Safe Working Load (SWL): 850 kg
• Mounting: Requires two 6 mm countersunk screws (not included)

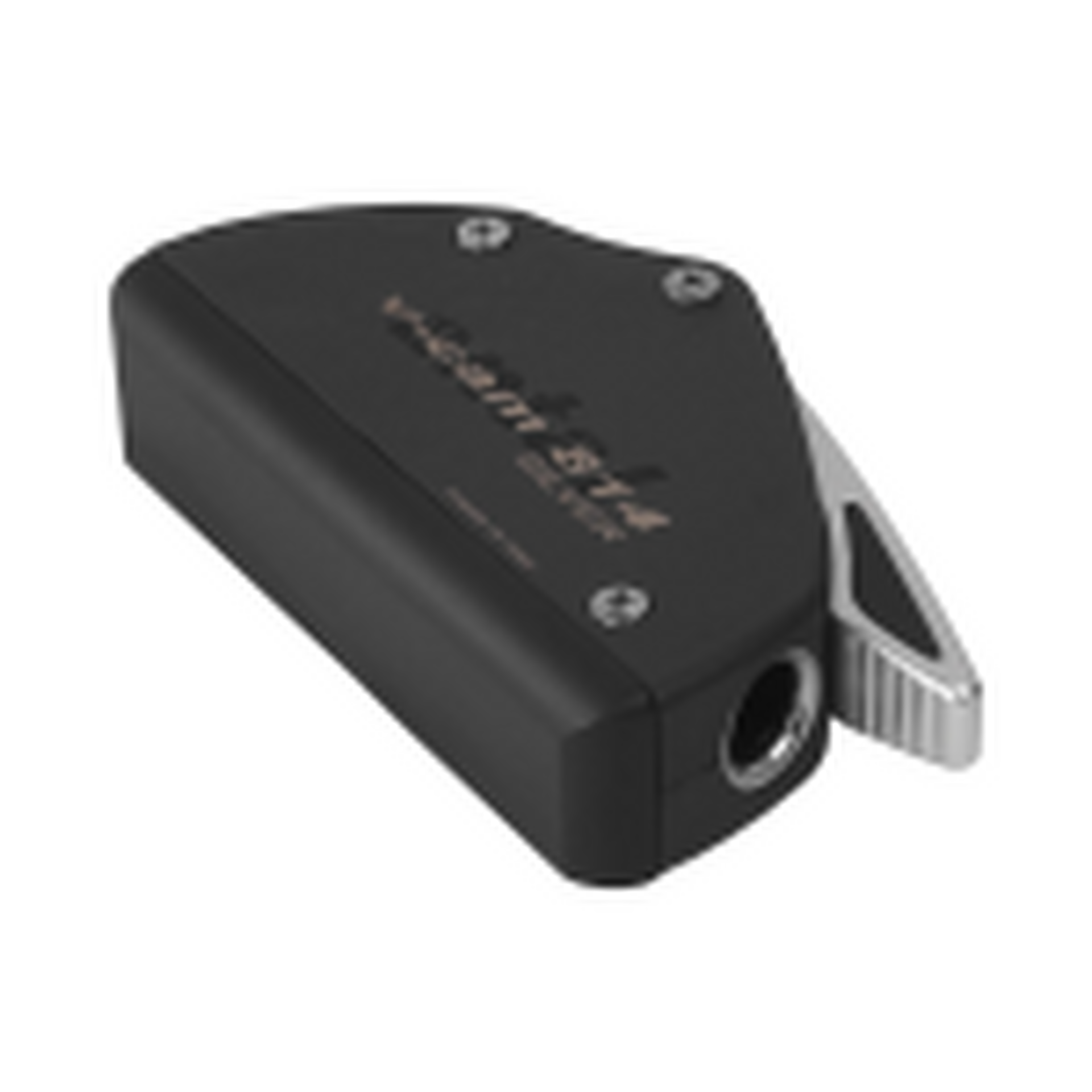

The Antal V-Cam 814 Single Horizontal Clutch (Model 549.111H) is engineered to provide secure and efficient line handling for 8–10 mm diameter lines. Its horizontal mounting orientation ensures a streamlined profile on the deck, minimizing obstruction and enhancing aesthetics.

Constructed with a UV-resistant resin body reinforced with stainless steel, this clutch offers durability and resistance to harsh marine environments. The large V-shaped cam applies pressure on three sides of the line, providing superior holding strength while protecting the line cover from damage.

The ergonomic silver anodized aluminum handle allows for easy operation, even under load. The clutch can be completely dismantled for simple maintenance and repair, ensuring longevity and reliable performance.

Specifications
Line Diameter: 8–10 mm
Length: 155 mm
Width: 36 mm
Height: 78 mm
Weight: 600 g
Safe Working Load (SWL): 850 kg
Mounting: Two 6 mm countersunk screws (not included)
Material: UV-resistant resin body, stainless steel reinforcements, aluminum handle
Part Number: 549.111H

The Antal V-Cam 814 Single Horizontal Clutch combines strength, durability, and ease of use, making it an excellent choice for sailors seeking reliable and efficient line handling solutions.
