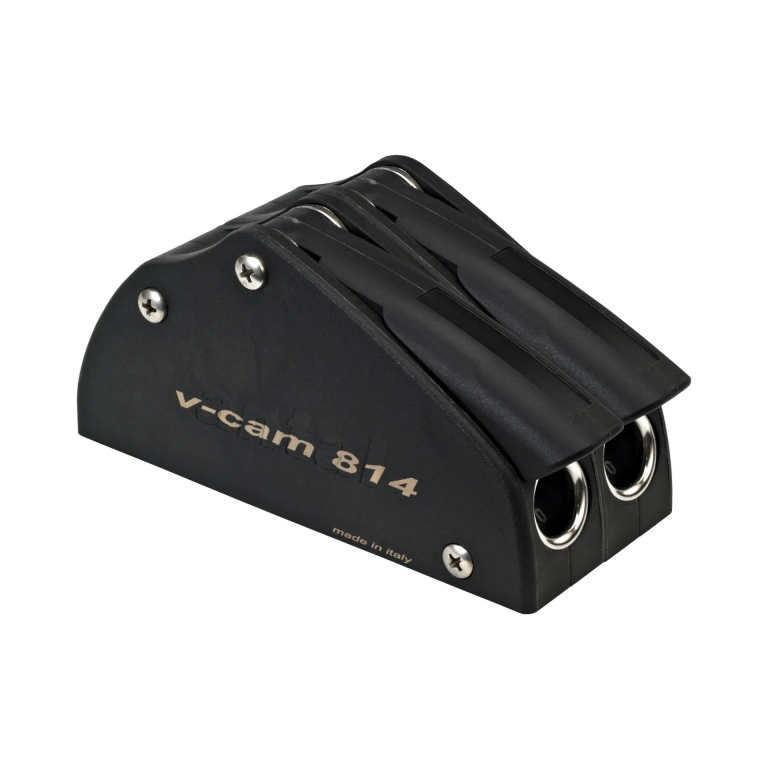

V-Cam 814 - Double Ø8-10mm Line

V-Cam 814 – Double Ø8-10mm Line

€221.50

Available on back-order

Description

  • Double clutch designed for lines with diameters of 8–10 mm
  • Constructed with a UV-resistant resin box structure reinforced with stainless steel
  • Features an aluminum base and V-Cam aligning bushing made of AISI 316 stainless steel
  • Can be completely dismantled for simple maintenance and repair
  • Fitted with a large V-shaped cam that offers higher holding strength compared to the V-Grip model
  • New mechanism ensures easy opening even under heavy load
  • Line retrieval can be achieved with the lever closed
  • Mounting requires four 6 mm countersunk screws (not included)

The Antal V-Cam 814 Double Clutch (Model 509-122) is engineered to provide secure and reliable line holding for sailing applications. Its robust construction and innovative design ensure optimal performance even under demanding conditions.

Specifications
Line Diameter: 8–10 mm
Length: 155 mm
Width: 65 mm
Height: 78 mm
Weight: 1,100 g
Safe Working Load (SWL): 600 kg (8 mm line), 850 kg (10 mm line)
Mounting: Four 6 mm countersunk screws (not included)
Material: UV-resistant resin box, stainless steel reinforcements, aluminum base, AISI 316 stainless steel V-Cam
Part Number: 509-122

The Antal V-Cam 814 Double Clutch combines strength, durability, and ease of maintenance, making it an excellent choice for sailors seeking reliable and efficient line handling solutions.
