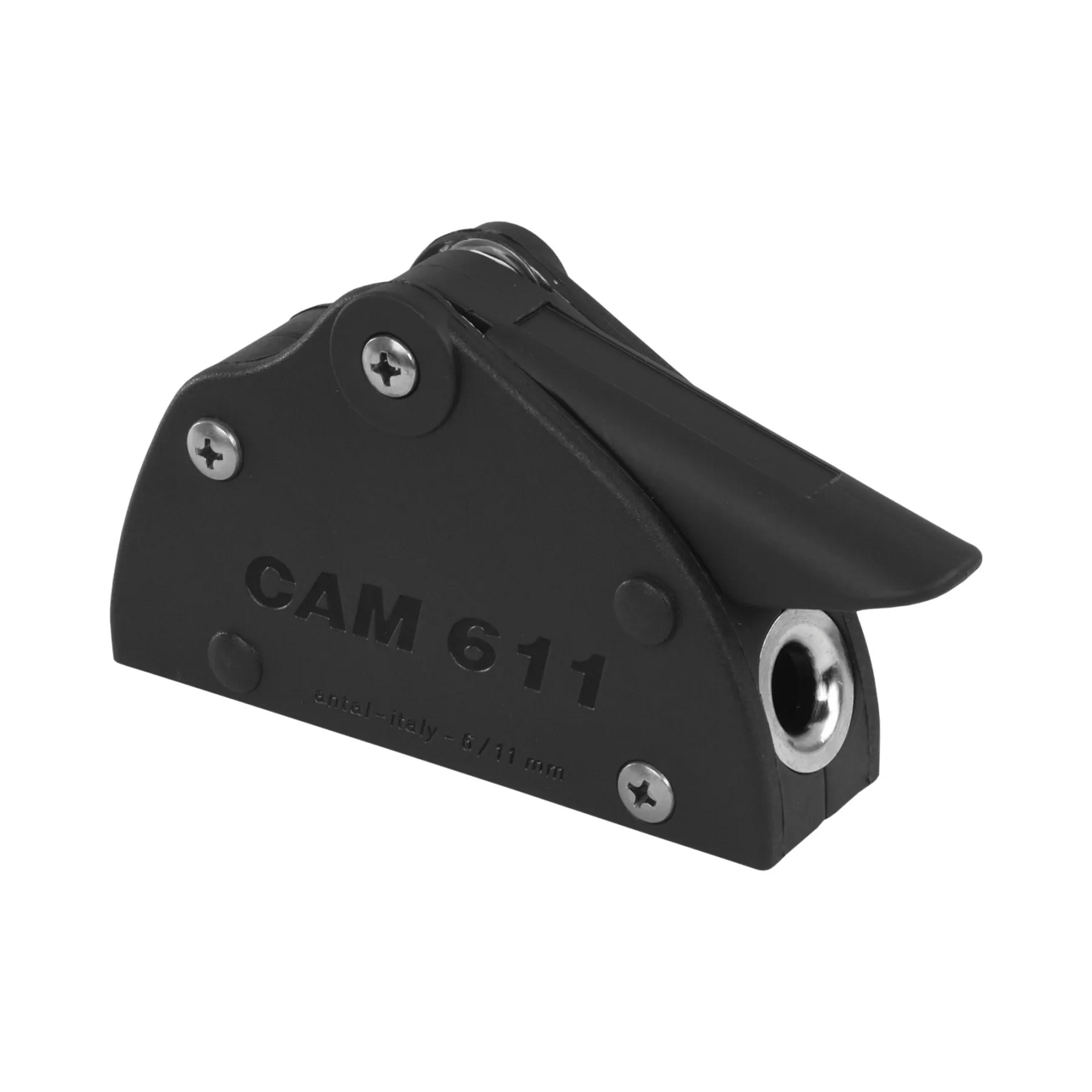

V-Cam 611 Clutch – Single Ø6-11mm Line

€121.50

Available on back-order

Description

Description

Single-line clutch designed for lines with diameters from 6 to 11 mm
Features a box structure made from UV-resistant resin with steel reinforcements
Equipped with a wear-resistant bronze cam mechanism and stainless steel aligning bushing
Dimensions: 118.5 mm length, 33 mm width, 73 mm height
Weighs approximately 370 grams
Safe Working Load (SWL): 400 kg for 6 mm line, 500 kg for 10 mm line
Mounting via 6 mm fixing hole (mounting screws not included)

The Antal V-Cam 611 Clutch – Single (Model 500-110) is engineered to provide secure and reliable line holding for a range of line diameters. Its durable construction ensures longevity and performance under load.

Specifications
Line Diameter: 6–11 mm
Length: 118.5 mm
Width: 33 mm
Height: 73 mm
Weight: 370 g
Safe Working Load (SWL): 400 kg (6 mm line), 500 kg (10 mm line)
Mounting: 6 mm fixing hole (mounting screws not included)
Material: UV-resistant resin, steel reinforcements, bronze cam, stainless steel bushing
Part Number: 500-110
