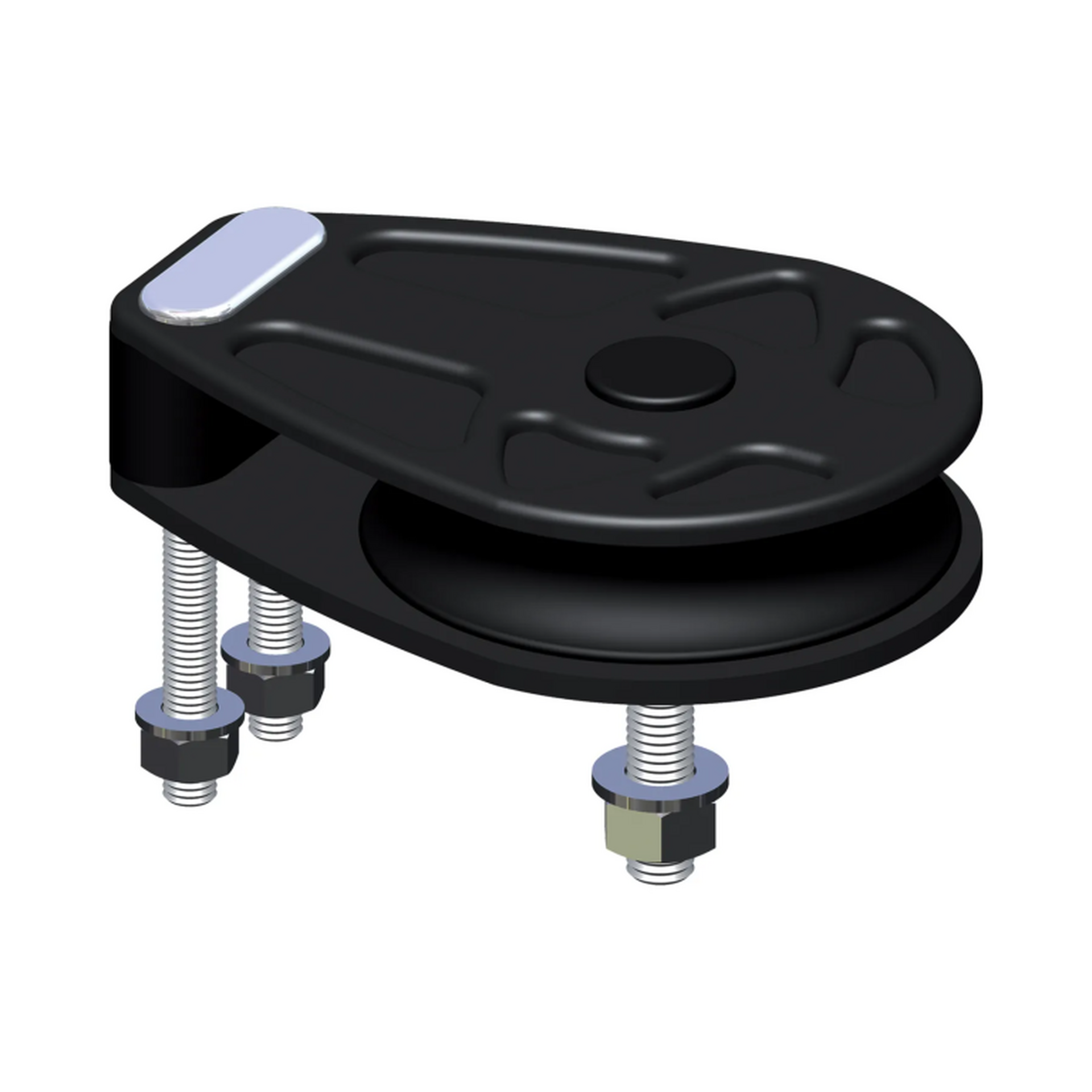

The Antal 831.154 Single Foot Block is designed for heavy-duty applications, featuring a 150 mm aluminium sheave supported by Delrin ball side bearings and a composite fibre radial bearing. This construction ensures smooth operation under high loads, with a Safe Working Load (SWL) of 6,500 kg.
Ideal for applications requiring robust performance, this block is suitable for use with lines up to 20 mm in diameter. Its durable aluminium sideplates and sheave provide strength and longevity, making it a reliable choice for demanding sailing conditions.
Specifications
Sheave Diameter: 150 mm (5.91 in)
Side Bearing: Delrin balls
Radial Bearing: Composite fibre
Sheave Material: Aluminium
Sideplate Material: Aluminium
Maximum Line Diameter: 20 mm (0.79 in)
Safe Working Load (SWL): 6,500 kg (14,330 lbs)
Weight: 1.8 kg (3.97 lbs)
Dimensions: Length 211 mm (8.31 in), Width 154 mm (6.06 in), Height 44 mm (1.73 in)
Fixing Screws: 2 x Ø12 mm
The Antal 831.154 Single Foot Block combines high load capacity with durability, making it an excellent choice for sailors seeking reliable performance in demanding conditions.
