Specifications
Breaking load (kg) [kg]: 181
Breaking load (kN) [kN]: 1.8
Breaking load (lb) [lb]: 400
Fasteners (in) [in]: #8 RH
Fasteners (mm) [mm]: 4 RH
Fastener spacing (in) [in]: 1 1/16
Fastener spacing (mm) [mm]: 27
Height (in) [in]: 7/8
Height (mm) [mm]: 22
Length (in) [in]: 1 7/8
Length (mm) [mm]: 48
Maximum line Ø (in) [in]: 1/4
Maximum line Ø (mm) [mm]: 6
Maximum rated load (kN) [kN]: 0.7
Maximum rated load (lb) [lb]: 150

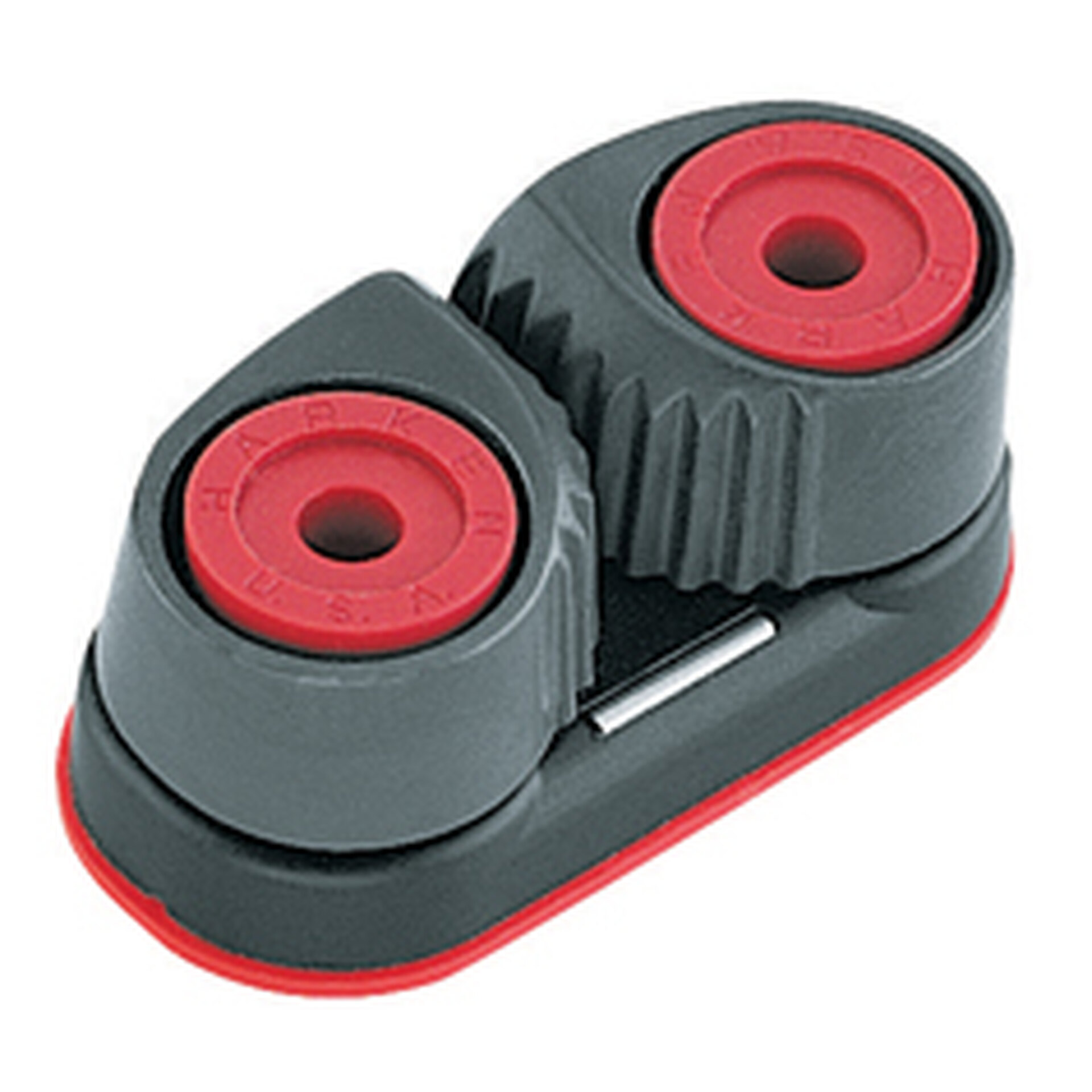

Meta Description: Harken cam cleats have multiple rows of ball bearings for easy angage and release of loaded lines.
Meta Keywords (separate with comma): cam cleat, Harken cam cleat
Minimum line Ø (in) [in]: 3/32
Minimum line Ø (mm) [mm]: 2
Maximum working load (kg) [kg]: 91
Maximum working load (lb) [lb]: 200
Pawls: Aluminum
Product Warning: DO NOT use Harken equipment for human suspension unless product is specifically certified and labeled for such use.
Spare Parts: MS-093
Weight (g) [g]: 26
Weight (oz) [oz]: 0.93
Width (in) [in]: 15/16
Width (mm) [mm]: 24
